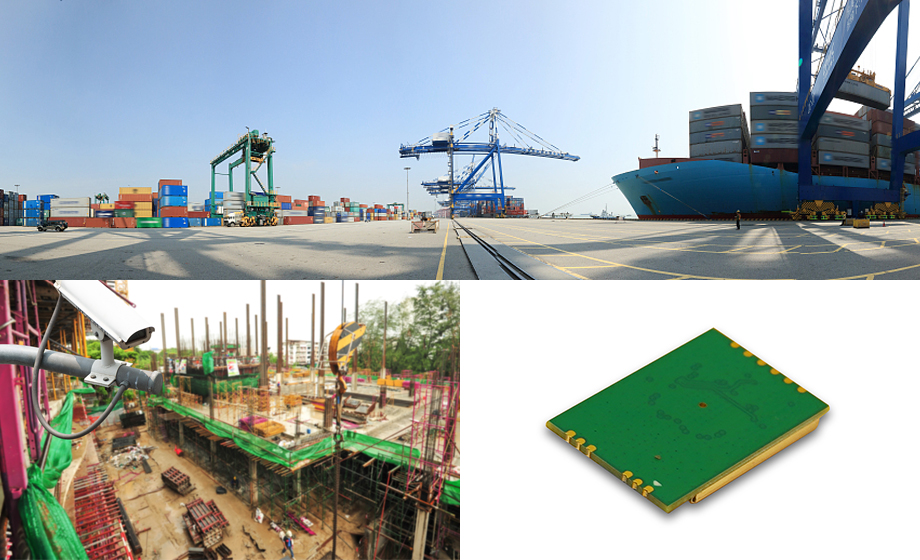

8km wireless transmission module port terminal/construction site remote wireless transmission
Industry background
In recent years, the pressure of land transportation and air transportation is increasing, and many logistics industry has shifted the route to the relatively low water, so the inland river and offshore basin ships are also showing a growing trend, and the accidents caused by water transportation are also increasing. How to ensure the safety of water transportation has become the focus of many logistics companies.
Demand analysis
The group needs to monitor in real time whether the on-site workers at the port are standardized for safe production and whether the coal storage is safe. In view of the complex environment of the dock, it is difficult to carry out wiring construction, so it is decided to adopt wireless monitoring system. The 8km wireless transmission module monitoring system mainly solves how to transmit the real-time video information of the wharf to the monitoring center, remotely monitor the operating ship, master the first-hand information of the wharf work, and ensure the safe and orderly operation of the waterway near the wharf.
8km wireless transmission module manufacturer as the project wireless video monitoring system equipment supplier and technical guidance.
Design principles and basis
The system adopts 360° gimbal camera. Due to the large camera Angle, point-to-point transmission mode is adopted according to user requirements. In order to ensure the stable transmission of real-time video signals, the wireless video equipment used in the system is 8km wireless transmission module csw2203.
The receiving end of the wireless monitoring system is installed on the 5th floor of the Group building. There is still a distance of 10 meters between the receiving end and the monitoring room. However, due to the inconvenient wiring in the indoor environment, a pair of 8km wireless transmission modules are required for wireless transmission to the monitoring room after the integrated switch. The NVR stores surveillance videos. When the NVR connects to the network, the NVR provides external login access, enabling monitoring anytime and anywhere.
8km wireless transmission module uses 4G/5G network to get rid of environmental restrictions, wireless monitoring anytime and anywhere
Industry background
With the development of 4g/5g wireless network, wireless video surveillance brings more space for development. In some remote areas, 4g/5g wireless video transmission devices can be used when wired networks are not available but network transmission is needed. For example, in some second - and third-tier cities, it is necessary to transmit part of the construction site to the monitoring center of the first-tier city in real time. This ultra-remote monitoring project can be transmitted wirelessly.
Demand analysis
The headquarters of a construction engineering company shall carry out real-time monitoring of all construction sites, including real-time video monitoring of important sites on the construction site, and display it on the monitoring display wall of the headquarters. Computer or mobile terminal networks can also access external monitoring systems for monitoring anytime and anywhere.
Design aspiration and rationale
The project requires remote transmission to achieve the effect of monitoring anytime and anywhere. The project location is usually difficult to wire, which is not conducive to the wireless bridge transmission environment. However, as there is 4G/5G signal coverage in the local area, 4G/5G wireless video transmission can be carried out using 8km wireless transmission module. This kind of equipment is not restricted by the environment, and can build monitoring systems without the help of communication signals from telecom operators, and display monitoring effects anytime and anywhere.
On-site installation of equipment
Due to the particularity of 4G/5G wireless video transmission of 8km wireless transmission module, there are three applications:
Fixed category: fixed-point surveillance camera is connected with 4G/5G wireless video transmission equipment, and the data is returned to the monitoring center through the mobile network.
Individual soldier: Individual soldier carries a wechat camera and a portable 4G/5G wireless video transmission device, which are connected and send data back to the monitoring center via a mobile network.
On-board: On-board gimbal camera is connected with 4G/5G on-board wireless transmission equipment, and the data is returned to the monitoring center through the mobile network.
The monitoring center can log in to the center server through a PC client to watch all front-end surveillance videos in real time. The monitoring center of the 8km wireless transmission module can also be equipped with a decoder, through which the decoder can be output to the TV wall for viewing, supporting mobile phone viewing. By installing a special client, and then logging in the center server, you can watch front-end video surveillance in real time.
