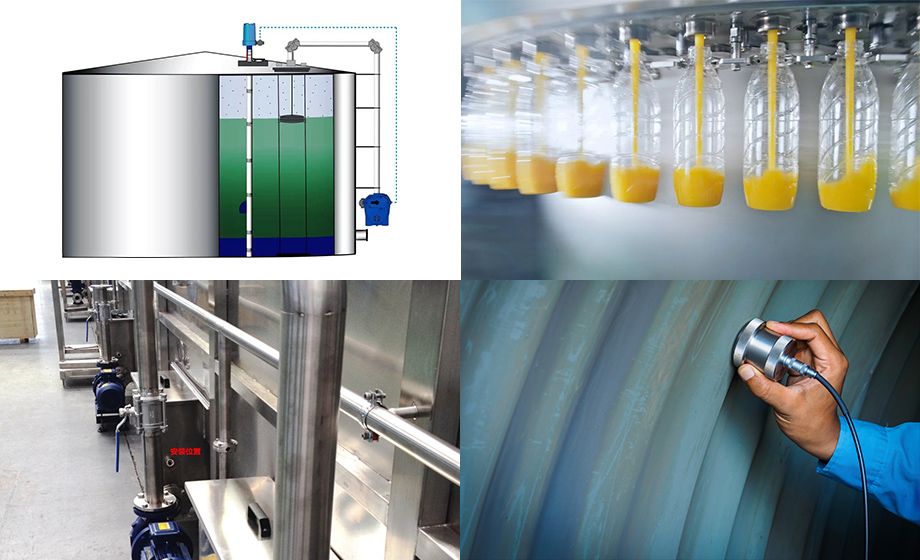

Radar module liquid level detection/level monitoring/material detection real-time feedback status, liquid level detection radar module adopts linear frequency modulation continuous wave mode, which has strong robustness and high measurement accuracy. Its principle has considerable advantages and is suitable for various complex working environments: hydrological detection of application scenarios such as rivers, lakes, and channels. Radar modules are more powerful in abnormal situations and complex environments, and can better penetrate smoke, dust, rain and snow. Less affected by weather, high stability. In addition, the low-power and maintenance-free design can work 24/7, maximizing cost savings.
Product advantages:
1. Ultra-high precision, millimeter level.
2. Outdoor use, not afraid of strong light.
3. Long service life and low maintenance cost.
4. Strong anti-interference ability, not subject to environmental restrictions.
Application scenarios:
Hydrological monitoring, water level measurement station, dam reservoir detection, lake water level detection, river water level monitoring, rainwater level monitoring, canned liquid level detection, well water level detection, etc.
Muck carriage status/level monitoring
In urban infrastructure construction projects, the gradual increase of mud trucks is an important means of transportation in urban engineering construction. Problems such as overloading and overspeeding often occur, which have become one of the main safety risks of urban roads. Many cities in my country have not yet achieved intelligent unified management and are difficult to supervise. In order to solve the problem of vehicle overloading and management from the source, reduce the possibility of traffic accidents caused by overloading.
The radar module is installed at the front of the carriage to detect and identify the status of the carriage in real time, including no-load and full-load status, tarpaulin/iron plate closed status, and carriage lifting status. Provide real-time data support for unified management, which is conducive to reducing urban traffic hazards.
Program advantages:
1. High ranging performance, strong resistance to ambient light, and can accurately monitor the distance information in the car in various environments.
2. High cost performance, high stability, and extremely low false alarm rate.
3. Small size, easy to install and integrate the camera together.
Material Inspection - Container Scenario
At present, the container industry lacks an effective cargo capacity and cargo attitude monitoring system, and cannot effectively and real-time detect the transportation status of the cargo. Container capacity information and cargo attitude information can be acquired in real time by installing radar modules. Check whether the cargo in the container has changed, such as loading and unloading, and report the capacity information to the visualization platform in real time. By identifying the loading status of all containers, the utilization rate and turnover rate of the container can be effectively improved.
Capacity information - The radar module measures the distance between the cargo and the tail of the container, reasonably calculates the cargo transportation volume according to the cargo size, calculates the container utilization rate and remaining storage capacity, and improves the container turnover rate.
Door opening detection - the module is installed on the container door, and the measured value changes abnormally, the door can be opened and the switch status of the door can be monitored.
Safety monitoring - improve personal safety and cargo safety, observe whether the radar measurement value often changes abnormally, determine whether there is a human intrusion in the container, and prevent safety problems such as cargo theft.
Attitude monitoring - real-time monitoring of status information during cargo transportation. When the measured value changes from one constant value D to another constant value d, it can be inferred whether the attitude of the cargo has changed, such as cargo dumping, cargo displacement, etc.
Installation method:
1. Install two radar modules on the cabinet door. Before closing the cabinet door, the real cargo capacity information cannot be obtained, which can be used for door opening detection.
2. There are multiple installations on the side wall, which cannot detect the switch state and detect the capacity information in real time.
Product advantages:
1. Small size, light weight, easy to integrate wiring, installed on the cabinet door or side wall without affecting the cabinet capacity;
2. The measurement frequency is high, and the distance information can be fed back in real time;
3. The measurement results are stable and not affected by environmental factors such as temperature;
4. In the low power consumption mode, the power consumption is less than 100mw; it can be powered by batteries, the battery replacement frequency is low, and the labor input is reduced;
5. The industrial version of the radar module supports 7-30V wide voltage input, no need to install additional battery modules, and the vehicle battery can be selected for direct power supply.
