UWB module ultra-broadband technology intelligent personnel positioning pipe gallery personnel positioning system, with the development of social economy, people's security awareness is getting stronger and stronger, and people's awareness of security is getting stronger and stronger. Especially in areas where key supervision is required, such as banks, secret rooms, construction sites, and oil depots, the requirements for statistical analysis of the total number of staff and tracking and control of staff walking routes are particularly prominent. The intelligent management system for staff monitoring under the open security service platform was born. Today, the editor will introduce the UWB module ultra-wideband technology intelligent personnel positioning method and its function for everyone in detail.
Intelligent personnel positioning mode:
In order to realize two different functions and meet the different security requirements of customers, the personnel monitoring intelligent management system provides two modes.
Mode 1: In UWB module counting mode, if the same card is swiped multiple times in this area, the system will accumulate multiple personnel. Mainly used in industrial and mining, petroleum, chemical and other enterprises that have high requirements for workers' safety in production. Personnel are authenticated at the front end and exit control areas by swiping card or biometrics. The access control controller exchanges data with the host computer software. The system processes the data in the background and releases the required data in real time through LED screens and other devices, which is convenient for management personnel to manage.
Mode 2: Personnel tracking mode. If the same card is swiped multiple times in the area, the system only counts one person. It's mostly used in high-security areas that require everyone in the area to be tracked.
Personnel entering and leaving the channel must be authenticated by swiping cards or biometrics, etc., and the entry and exit data of each person is recorded through the access control controller. The system background controller records the entry and exit data of each person, and the access control The entry and exit data of personnel are recorded, and the entry and exit data of each person is recorded through the access control controller.
The two modes can be switched arbitrarily in the system, which is convenient for user management.
UWB module ultra-wideband technology system functions:
1. Under UWB technology, the name, department, event and other records of the card swipe can be displayed in real time, and the information in the area can be counted by the number of card swipes through the integrated LED screen and other information publishing equipment, swing gates and other channel equipment.
2. When used in industrial and mining, petroleum, chemical and other enterprises, it can display the total number of people in the operating area in real time through information release equipment such as LED screens, as well as the number of workers in each department, such as operators, plumbers and other information.
3. In the personnel tracking mode, the walking track of the personnel can be inquired, and the current position of the personnel can be recorded in real time.
4. When an alarm event such as illegal card or forced entry occurs, the UWB module system can immediately locate the specific location of the event, the integrated alarm device will respond immediately, and the surveillance video will also locate the alarm location, helping security personnel accurately locate and timely. deal with.

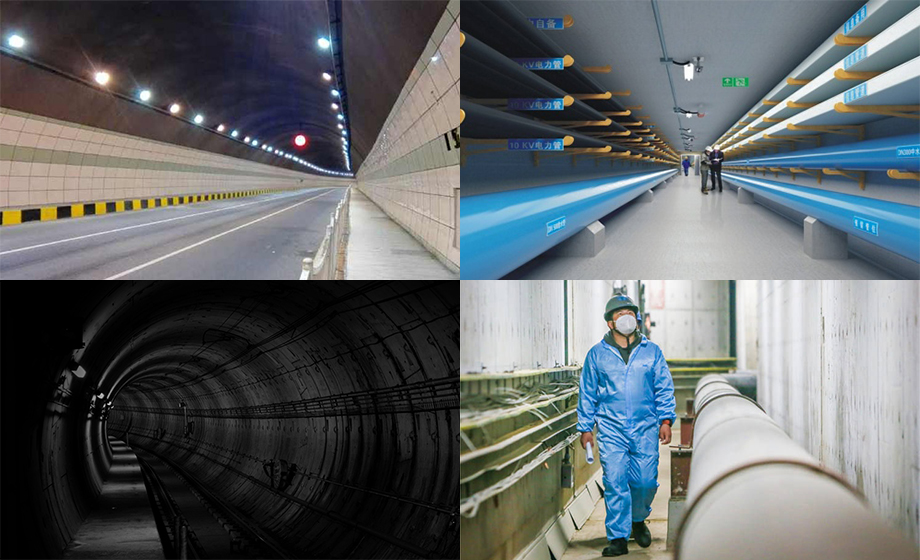

The pipe gallery is one of the important facilities for urban operation, which can ensure the normal operation of the entire pipe gallery system. The staff of different departments will regularly and irregularly check the corresponding facilities for overhaul and maintenance. The safety of these personnel also needs to be guaranteed, which is also the big role of UWB module ultra-wideband technology.
The role of the personnel positioning system of the UWB module in the pipe gallery:
1. Personnel safety handling. Real-time and accurate personnel positioning, the operator's location can be checked at any time. Scattered area. In the motion track, when an accident or emergency occurs, the SOS one-key alarm function can notify the processing personnel to immediately help or rescue, and improve the safety processing ability of the construction personnel.
2. Staff attendance calculation. The location of the on-site personnel is accurately positioned in real time, and the situation of the on-site personnel is directly reflected. The attendance information of the personnel entering and leaving the construction pipe gallery is automatically calculated by the integrated pipe gallery positioning system.
3. Alarm in risk area. Security electronic fence can be carried out. Division of risk alert areas. When it is found that the positioning policy has entered the risk area or the authorization policy has been fixed in the risk area for a long time, the alarm will be triggered immediately and the alarm data will be returned to the background.
4. Inspection and evaluation processing. Calculate and identify all the identity information of the inspectors, and accurately record and save the entry and exit time in the operation area, so that the processing personnel can calculate, inspect and supervise, so as to prevent misoperation, leakage operation and repeated operation, and ensure that all inspection indicators meet the safe processing requirements to improve the efficiency of inspection processing.
How to use the UWB module pipe gallery personnel positioning system:
1. The global position of the pipe gallery is displayed, and the inspection personnel, inspection robots, construction personnel, etc. in the pipe gallery are displayed on the map in real time, and the track return is supported, which is convenient for viewing historical information.
2. Electronic fence: When breaking into the restricted area, when someone breaks in, you can set the break-in alarm according to the distance calibration.
3. Seek help and alarm in danger: When the personnel in the pipeline corridor are in danger, they can press the SOS button to be equipped with a label and alarm the system, and the rescuers can accurately rescue according to the alarm location.
4. Fault point calibration: When the inspector finds the fault point that needs to be repaired, the fault point can be calibrated by marking the button to provide the maintenance personnel with accurate fault location information.
5. Personnel Koler can automatically issue a monthly test report, according to the inspection information of the inspectors.
